Product Overview

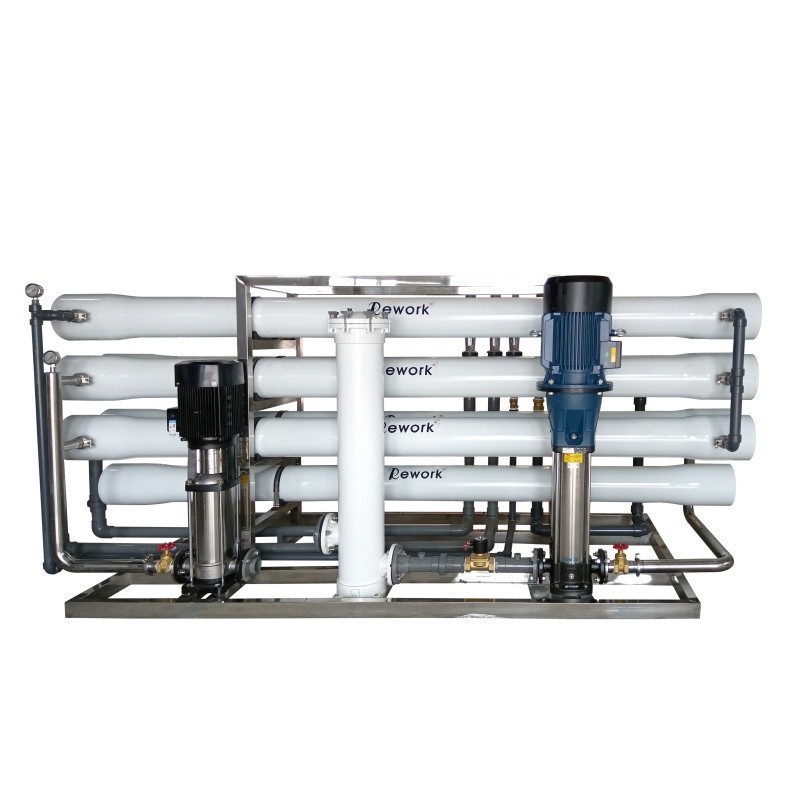

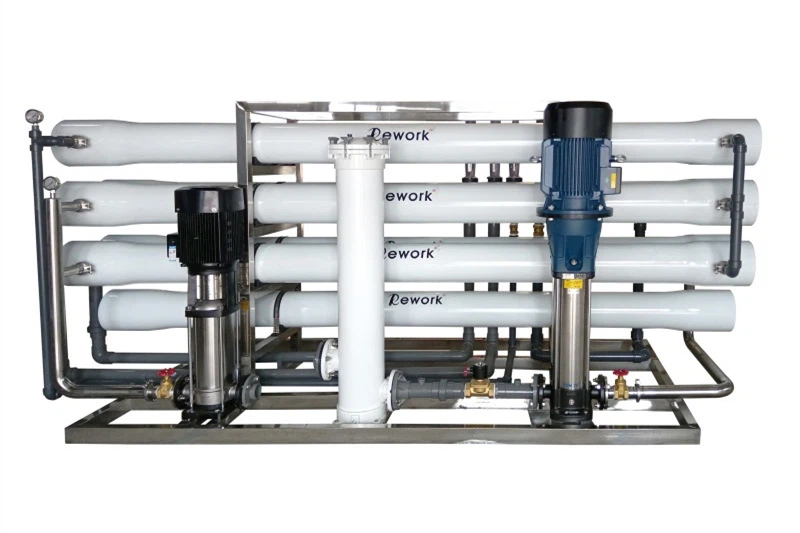

This 6 m³/h industrial reverse osmosis (RO) water treatment system is an industrial water purification solution, built for medium-to-large industrial production.

This industrial reverse osmosis system supports 24/7 continuous operation to fit your high-intensity production rhythm. It comes pre-assembled with all necessary functional parts, so you can finish the on-site installation quickly, and put the system into formal use without extra complex assembly work. It can deliver consistent, stable high-purity water continuously to meet your production needs.

Feature Highlights

High-purity output: It delivers 6 m³/h purified water with conductivity ≤10 μS/cm, which meets the strict purity standards of most high-demand industries.
Efficient desalination: It achieves ≥99% salt rejection and ≥70% water recovery. This cuts your water waste and long-term operation costs effectively.
Protective pretreatment: Built-in multi-stage filters protect the core RO membranes from clogging, oxidation and scaling, which extends the component lifespan a lot.
Energy-saving design: The total installed power of the whole system is About ≤8.5 kW, which keeps your daily energy cost at a low level.
Wide adaptability: It works stably with different raw water types, and can handle feed TDS up to 2000 ppm and feed water temperature between 5-45°C.

Technical Specifications

Core Performance Parameters
Parameter	Specification
Permeate Flow	6 m³/h
Salt Rejection Rate	≥99% (Max 99.5%)
Water Recovery Rate	≥70%
Outlet Conductivity	≤10 μS/cm
Operation Pressure	1.0-1.6MPa (≈10–16 bar)
Total Installed Power	≤8.5 kW
Max Feed Water TDS	≤2000 ppm
Feed Water Temperature Range	5-45°C

System Components
Section	Component	Details
Pretreatment	Raw Water Tank	1200L, SS304, 1 set
Pretreatment	Quartz sand filter	1000*1900
Pretreatment	Activated Carbon Filter	Φ1000×H2300mm
Pretreatment	Precision Filter	240×L1500
RO System	RO Membrane	8040 High Rejection type, 6 pieces
RO System	Membrane Housing	8040-2, FRP, 3 units
RO System	Conductivity Meter	0-2000μS/cm, 2 units
Electrical & Piping	Control System	PLC Automatic Control, 1 set
Electrical & Piping	Control Cabinet	Standard Configuration, 1 set
Electrical & Piping	Pipes & Valves	DN50/40/DN25/DN20/DN15, PN16, SS304/U-PVC, 1 lot
Electrical & Piping	Pure Water Tank	6m³, SS304, 1 set

Applications

Electronics

It provides ultra-pure water to protect your sensitive chips and components, fully meeting the strict standards of electronics production.

Food & Beverage

It removes all harmful contaminants from raw water, ensuring your products are safe and meet international food safety standards.

Lab use

It delivers stable, consistent pure water for your tests and experiments, cutting your cost of purchasing expensive bottled lab water.

Customization Options

Flow Rate Adjustment

We can adjust the system's output flow, building smaller or larger systems based on your actual production water demand.

Material Upgrade

You can upgrade the main parts to SS316L stainless steel, which works well for corrosive feed water or high-hygiene industries.

Automation Package

You can add a PLC control system, which lets you monitor the system in real time and reduces manual work for your team.

Extra Pretreatment

We can add special pretreatment filters, making the system work stably even with special raw water like high-TDS water.

OEM/ODM Service

We support full OEM/ODM, and we can add your brand logo or adjust the design to fit your market needs.

Why Choose Us?

10+ years of industry experience

We have over 10 years of experience in water treatment, and have served thousands of clients around the world.

Verified qualifications

We hold ISO9001. All our products meet strict international quality standards.

One-stop turnkey solutions

We handle the whole process from design, production, installation to after-sales. You don't need to work with multiple vendors, as we take care of everything for you.

Strong R&D capability

We have our own R&D center, so we can solve even complex water treatment problems for you.

FAQ

Q1: Why does the system have multiple pretreatment filters?

Each filter works to protect the core RO membranes in different ways. They remove large particles, harmful chlorine and water hardness separately, which effectively extends the whole system's service life.

Q2: Can we customize this equipment?

Yes, we support full customization and OEM/ODM services. You can tell us your specific needs like flow rate or raw water quality, and we will build a tailored solution that fits you.

Q3: Are you a manufacturer or a trader?

We are a direct manufacturer with our own factory in WeiFang. We integrate R&D, production and trade together, so we can offer you factory-direct prices and reliable professional after-sales support.
