Product Overview



The RO-PRO-M Series is a heavy-duty, skid-mounted reverse osmosis water treatment system engineered for industrial and commercial applications requiring continuous high-purity water. Built around a stainless steel frame, this system integrates multi-stage pre-filtration, high-pressure centrifugal pumping, thin-film composite (TFC) spiral-wound membranes, and an automated PLC control interface.


Designed for direct integration into plant water networks, the system reduces Total Dissolved Solids (TDS) by up to 99.4%, removing heavy metals, salts, organics, and micro-organisms. Every unit undergoes hydrostatic pressure testing and dry-run PLC validation prior to dispatch.




  • Industrial Reverse Osmosis System
    · Stable 6m³/h high-purity water output, ≥99% salt rejection, reliable industrial-grade quality.
    · Skid-mounted integrated design, quick installation, continuous operation.
    · Corrosion-resistant, energy-saving, PLC...
    view more
  • Commercial Reverse Osmosis System
    · 4–5T/H high flow, 99% salt rejection, pure water meets global drinking standards.
    · Fully automatic, multi-source compatible, stable for industrial & commercial use.
    · Fully customizable, global voltage, certified &...
    view more
  • Skid-mounted Reverse Osmosis System
    · Pre-assembled skid design for fast installation & quick startup.
    · 99% salt rejection with premium components for stable performance.
    · Fully automatic operation, customizable & globally certified.
    view more
  • RO Purified Water System
    · Fully automatic PLC control, unattended operation.
    · High salt rejection & extended membrane life, low maintenance cost.
    · Full 304 stainless steel, customizable for all industries.
    view more
  • RO-EDI Combination Water System
    • Stable ultra-pure water output, conductivity ≤10μS/cm, meeting industrial high standards.
    • ≥70% recovery & ≥99% rejection, greatly reduce water & power cost.
    • Fully automatic, durable, multi-industry applicable &...
    view more
  • Seawater Reverse Osmosis System
    • High-efficiency desalination, meets food standards.
    • Flexible control, energy-saving & stable.
    • Factory-direct, customizable, 1-year warranty.
    If you need a way to turn salty seawater into clean, usable...
    view more
  • Brackish Water Reverse Osmosis System
    • 98%+ Salt Rejection, Stable Pure Water Output.
    • Energy-Saving, Low Long-Term Operating Cost.
    • Fully Customizable for All Industrial Scenarios.
    view more
  • Residential Seawater RO System
    • 99% seawater desalination, direct drinking water quality.
    • Fully automatic, low energy cost, durable branded parts.
    • Fully customizable, ISO certified, 1-year warranty.
    view more
  • Marine Boat RO Watermaker
    • All-in-one marine RO watermaker, ready to use, stable fresh water supply.
    • 99% salt rejection, drinking-grade output, auto-wash for low maintenance.
    • Fully customizable capacity/voltage/layout, OEM & private label...
    view more
  • Solar Powered Seawater RO Machine
    • 100% Solar-powered, off-grid operation, no grid power needed.
    • 1000L/H high-efficiency desalination, safe drinking water.
    • Fully automatic, customizable, global certified & reliable service.
    view more

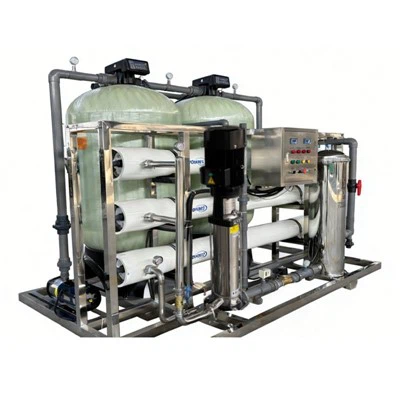

  • Commercial RO Purified Water System
    • 1000L/H high output, 98% salt rejection, stable for commercial water supply.
    • Smart monitoring & auto-protection, easy operation, low maintenance cost.
    • Certified factory, customizable, global one-stop export service.
    view more

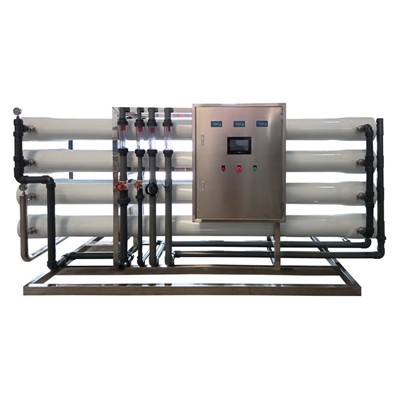

  • Industrial RO Water Purification System
    · Industrial dual‑membrane purification, 98% salt rejection, stable compliant water output.
    · Fully automatic intelligent control, water & power saving, low operating cost.
    · Flexible customized capacity, adaptable to...
    view more
First 12 Last

Skid-mounted Reverse Osmosis System



Key Features

Stainless Steel Structural Skid: Built on a 304/316L stainless steel frame, passivated and TIG-welded to withstand corrosive operating environments.


High-Efficiency Membrane Elements: Utilizes industry-standard 4040 and 8040 polyamide TFC membranes delivering stable salt rejection under varying feed temperatures.


Energy Recovery / Variable Frequency Drive: Integrated Danfoss VFDs on high-pressure pumps reduce energy consumption by matching hydraulic output to actual demand.


Automated Flush Cycle: Programmable automatic flush sequence using permeate water prevents membrane scaling and organic fouling during standby periods.


Instrumentation & Monitoring: Inline digital sensors monitor real-time Feed TDS, Permeate Conductivity, System Pressure, and Flow Rates with 4-20mA output for SCADA integration.



Technical Specifications


Technical Parameter

RO-PRO-1000

RO-PRO-5000

RO-PRO-10000

Nominal Permeate Flow

1,000 GPD (3.8 m3/day)

5,000 GPD (18.9 m3/day)

10,000 GPD (37.8 m3/day)

Design Recovery Rate

65% - 75%

70% - 78%

75% - 82%

Salt Rejection Rate

>= 99.2%

>= 99.4%

>= 99.5%

Max Feed TDS Limit

2,000 ppm

2,000 ppm

2,000 ppm

Membrane Configuration

2 x 4040 Elements

2 x 8040 Elements

4 x 8040 Elements

High-Pressure Pump

Grundfos Vertical Multistage, 1.5 kW

Grundfos Vertical Multistage, 4.0 kW

Grundfos Vertical Multistage, 7.5 kW

Pre-Filtration Rating

5-micron Multi-Cartridge SS Filter

5-micron FRP Multi-Cartridge Filter

5-micron FRP Multi-Cartridge Filter

Operating Pressure

150 - 220 psi

160 - 230 psi

170 - 240 psi

Power Supply

220V/380V, 3-Phase, 50/60Hz

380V/460V, 3-Phase, 50/60Hz

380V/460V, 3-Phase, 50/60Hz

Dimensions (L x W x H)

1200 x 800 x 1500 mm

2200 x 1000 x 1700 mm

3000 x 1200 x 1850 mm





Applications & Industries

Boiler Feed Water: Pre-treatment for low-pressure and high-pressure steam boilers to eliminate silica scaling and tube corrosion.


Food & Beverage Processing: Ingredient water preparation, bottle washing lines, and clean-in-place (CIP) final rinse loops.


Electronics & Semiconductor Manufacturing: Primary stage purification supplying feed water to EDI (Electrodeionization) and mixed-bed polishers.


Pharmaceutical & Laboratory Utilities: Pure water generation compliant with USP/EP pre-treatment guidelines.


Commercial Laundries & Car Washes: Spot-free rinse water generation, eliminating mineral spotting and reducing soap consumption.

Commercial Reverse Osmosis System



Product Models & Comparison


Model

RO-PRO-2000

RO-PRO-20000

RO-PRO-50000

Capacity (GPD)

2,000

20,000

50,000

Skid Layout

Single Skidded

Dual Skidded

Multi-Skid Rack

Control Panel

Siemens S7-1200 PLC

Siemens S7-1200 PLC

Siemens S7-1500 PLC

Target User

Commercial Plant

Medium Industrial

Municipal / Heavy



Customization


Engineered-to-order configurations are available based on raw water analysis and spatial constraints:

Commercial Reverse Osmosis System suppliers


Material Upgrades

Wetted parts upgradeable to 316L stainless steel or Super Duplex for high-salinity or corrosive feedwater.



Pre-Treatment Integration

Integrated chemical dosing skids (antiscalant, sodium metabisulfite, pH adjustment) mounted directly on the primary frame.

Seawater Reverse Osmosis System factory
Seawater Reverse Osmosis System


Post-Treatment Options

UV sterilizers, ozone injection, or EDI modules integrated downstream of the RO permeate outlet.



Control Architecture

Allen-Bradley (Rockwell) PLC controllers available as an alternative to Siemens configurations upon project specification.

Commercial Reverse Osmosis System best



Quality Assurance



Manufacturing Compliance

Built under ISO9001 certified quality management protocols, with full traceability of raw materials and pressure components.

01

Welding Standards



Orbital TIG welding performed on high-pressure stainless steel piping with internal bores passivated to prevent microbial growth.

02

Hydrostatic Testing



Every pressure vessel and high-pressure manifold is factory tested at 1.5 times maximum working pressure for 30 minutes.

03

Electrical Compliance



Control panels built in accordance with UL508A and CE wiring standards, featuring Schneider electrical switchgear.

04

Traceability



Material test reports (MTRs) for pressure vessels, pumps, and membrane serial numbers provided in the final documentation dossier.

05



Seawater Reverse Osmosis System suppliers



Project References & Case Studies

Case 1: Automotive Component Plant (Germany)
Application: Paint shop rinse water supply (15,000 GPD system).


Result: Maintained permeate conductivity below 15 uS/cm continuously for 24 months, reducing reject water volume by 12% via optimized concentrate recirculation.


Case 2: Commercial Bottling Facility (USA)
Application: Primary ingredient water preparation (30,000 GPD dual-skid system).


Result: Integrated automated CIP system reduced membrane cleaning frequency from monthly to quarterly operations.





FAQ



Q: What is the maximum feedwater SDI (Silt Density Index) required for this system?

A: The feed water SDI must be kept below 3.0. For raw water sources with higher SDI values, we supply matching multi-media filters or ultrafiltration (UF) pre-treatment skids upstream.

Q: Can the recovery rate be adjusted on-site?

A: Yes. The system incorporates manual concentrate control valves and automated reject recycle loops allowing operators to adjust recovery rates between 50% and 85% depending on raw water chemistry.

Q: What maintenance is required for standard operation?

A: Routine maintenance includes replacing 5-micron cartridge filters when differential pressure exceeds 15 psi, checking chemical dosing tank levels, and performing clean-in-place (CIP) membrane cleaning when normalized permeate flow drops by 10-15%.

Q: Are replacement membranes and parts proprietary?

A: No. All components—including membrane elements (8040/4040), Grundfos pumps, and GF piping—are standard industrial sizes sourced globally, ensuring local availability and eliminating vendor lock-in.

Q: What documentation is provided with shipment?

A: Each system ships with a comprehensive Data Book containing P&ID diagrams, electrical schematics, PLC source code backup, instrument calibration certificates, and material conformity certificates.

Q: What is the standard manufacturing lead time?

A: Standard catalog models (2,000 to 10,000 GPD) ship within 4 to 6 weeks. Customized multi-skid systems requiring special metallurgy or third-party inspections typically require 8 to 12 weeks.



modular-1
Request a Quote & Engineering Resources

To receive a formal quotation tailored to your project requirements, please provide the following parameters via our RFQ form:
Raw water source (Well water, tap water, surface water, or wastewater)
Complete water analysis report (TDS, hardness, silica, iron, SDI)
Required permeate flow rate (GPD or m3/h)
Permeate water quality requirements (Target conductivity or resistivity)
Available electrical supply specifications

We're well-known as one of the leading reverse osmosis water system manufacturers and suppliers in China, featured by quality products and good price. Please rest assured to buy bulk reverse osmosis water system made in China here from our factory. Customized orders are welcome.
