Product Overview



The Industrial Deionized Water System utilizes dual-pass reverse osmosis combined with continuous electrodeionization (RO-EDI) or mixed-bed ion exchange resin tanks to strip ionic contaminants from raw process water. Built on a modular, skid-mounted frame engineered via 3D CAD modeling and fully documented P&ID schematics, the unit delivers consistent ASTM Type II or Type III deionized water for precision manufacturing, laboratory testing, and chemical processing lines. Each system is custom-configured based on incoming feed water analysis and required daily volume capacity to prevent scaling, minimize pressure drops, and maintain strict ionic purity thresholds.

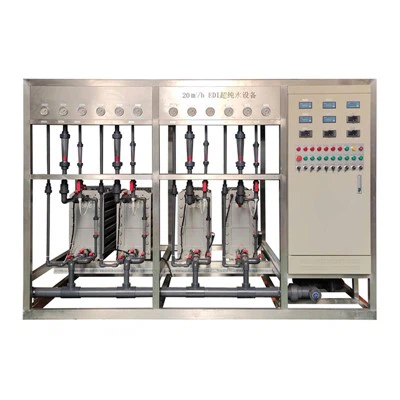

  • Electrodeionization EDI System
    · Chemical‑free regeneration, lower operating costs.
    · 24/7 continuous ultra‑pure water production.
    · Modular design, easy installation & low maintenance.
    view more
  • Continuous Electrodeionization CEDI System
    · Chemical-free regeneration, ultra-pure water ≥18 MΩ·cm, cost-saving & eco-friendly.
    · 24/7 continuous operation, auto-cleaning, low maintenance.
    · Modular & quick install, adaptable to water sources, customizable.
    view more
  • RO and EDI Ultrapure Water System
    · Integrated RO + EDI system delivers stable ultrapure water for industrial use.
    · Certified quality & branded parts ensure reliable long-term operation.
    · Auto-control, fast delivery & 24/7 support reduce your...
    view more

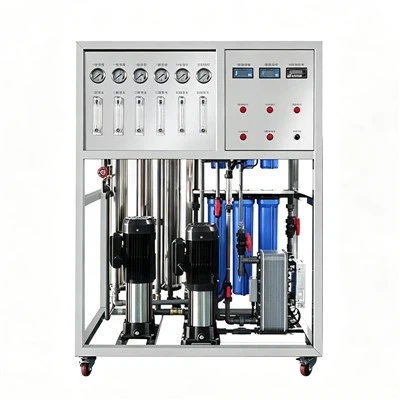

  • Industrial EDI Ultrapure Water Equipment
    · Continuous & stable ultrapure water output, fully automatic operation.
    · No acid/alkali regeneration, eco-friendly & cost-effective.
    · 99.99% salt rejection, high water recovery for long-term use.
    view more

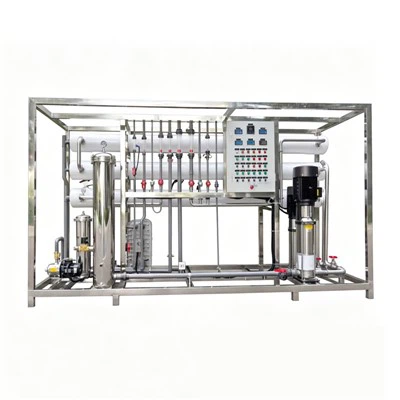

  • RO EDI Integrated System
    · Zero chemical regeneration, cost-saving & eco-friendly.
    · 24/7 stable ultrapure water, no downtime.
    · Intelligent control & modular customization.
    view more
  • Ion Exchange Water Treatment Unit
    · Fully automatic ion exchange, stable scale removal.
    · Industrial certified quality, compliant softened water.
    · Customizable for all scenarios, global after-sales.
    view more

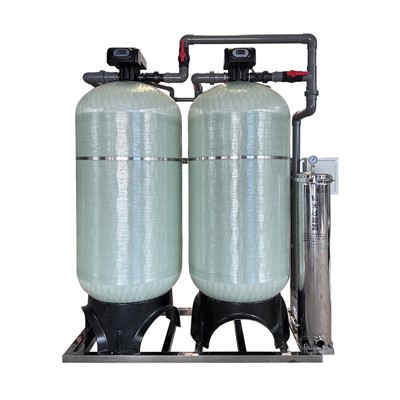

  • Ion Exchange Water Softening System
    · Fully automatic ion exchange water softening, stable operation with unattended whole process.
    · Wide range of 500L-1000m³/h, covering all scenarios for household and industrial use.
    · CE & ISO certified with strict...
    view more

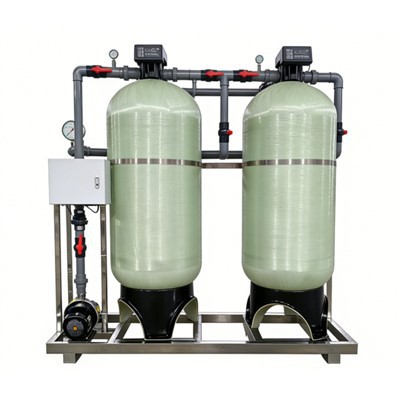

  • Ion Exchange Water Purification System
    · Stable & automatic water output, consistent qualified water quality.
    · Ultrapure water available, fits high-standard industrial production.
    · Internationally certified, factory direct with full after-sales service.
    view more

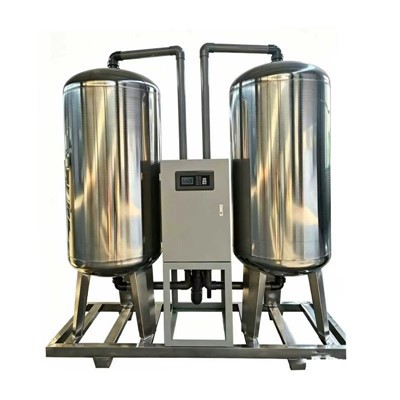

  • Industrial Demineralizing Water Softener
    • Dual‑pass ultrapure water, 99.5% salt rejection, stable output with zero fluctuation.
    • Continuous operation, acid/alkali‑free regeneration, eco‑friendly and cost‑saving.
    • Fully customizable parameters, suitable for...
    view more

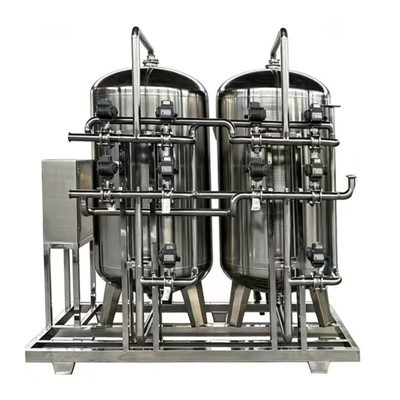

  • Industrial Water Softener
    · Fully automatic intelligent water softener with APP remote control, hassle-free operation.
    · Powerful anti-scaling, extend equipment life and reduce operating costs.
    · Customizable configuration for various...
    view more

Electrodeionization EDI System



Key Features

Modular Skid-Mounted Architecture: Constructed on a structural 304 or 316L stainless steel frame, pre-piped with Schedule 80 PVC or SS316L tubing to minimize on-site installation time and footprint.


Continuous Electrodeionization (EDI) Option: Eliminates the need for hazardous acid and caustic regeneration chemicals, ensuring continuous high-purity water output without production interruptions.


Integrated PLC & HMI Control Panel: Powered by Siemens S7 or Allen-Bradley programmable logic controllers with real-time digital monitoring for resistivity, temperature, flow rate, and tank level status.


Sanitary Tri-Clamp Connections: Utilized across critical product lines to eliminate dead legs and prevent bacterial growth in sensitive applications.


Automatic Flush and Recirculation Cycles: Programmable timers and conductivity-triggered dump valves automatically divert out-of-spec water during startup or standby phases.



Technical Specifications


Parameter

Standard Industrial Model (DI-500)

Heavy-Duty Process Model (DI-2000)

Peak Flow Rate

2.0 m3/h (8.8 GPM)

8.0 m3/h (35.2 GPM)

Output Water Resistivity

> 15 MOhm*cm at 25 deg C

> 18.2 MOhm*cm (with optional polishing loop)

Product Conductivity

< 0.067 uS/cm

< 0.055 uS/cm

Max Feed Water TDS

< 500 ppm

< 800 ppm

Primary Technology

Reverse Osmosis + Mixed Bed Ion Exchange

Dual-Pass RO + EDI + UV Sterilization

Pump Brand & Type

Grundfos Vertical Multistage (SS316)

Grundfos Vertical Multistage (SS316)

Vessel Construction

FRP Pressure Vessels (Fibre-reinforced plastic)

Stainless Steel 316L Electropolished Vessels

Electrical Supply

380V / 480V, 3-Phase, 50/60Hz

380V / 480V, 3-Phase, 50/60Hz

Operating Pressure

1.0 - 1.4 MPa

1.2 - 1.6 MPa





Applications & Industries

Electronics & Semiconductor Manufacturing: Wafer rinsing, PCB wet etching, and component cleaning where ionic impurities cause short circuits.


Surface Treatment & Metal Finishing: Final rinse tanks in electroplating, powder coating, and anodizing lines to prevent water spot residue and coating delamination.


Pharmaceutical & Chemical Processing: Solvent dilution, equipment washing loops, and feed preparation for USP purified water generation systems.


Automotive Manufacturing: Paint shop pre-treatment and electrophoretic deposition (ED) rinse stages to ensure paint adhesion.

Continuous Electrodeionization CEDI System



Customization Options


Systems are configured to match specific plant utility constraints and water chemistry profiles. Available engineering modifications include:

RO and EDI Ultrapure Water System


Footprint Adaptation

Custom 3D skid layouts designed to fit tight mechanical room configurations or containerized mobile water treatment modules.



Redundancy Configuration

N+1 pump setups and dual-train filtration lines for continuous 24/7 manufacturing operations.

Continuous Electrodeionization CEDI System suppliers
Ion Exchange Water Treatment Unit


Material Upgrades

Wetted components upgradeable from Schedule 80 PVC to PVDF or sanitary 316L stainless steel with orbital welding documentation.



Pre-Treatment Integration

Integrated multimedia filters, activated carbon filters, chemical dosing systems (antiscalant/chlorine reduction), and water softeners mounted on the primary skid.

Ion Exchange Water Treatment Unit suppliers



Ion Exchange Water Treatment Unit suppliers



Quality Assurance & Compliance

Manufacturing Standards: Produced under ISO 9001 quality management systems, with pressure vessels complying with ASME / PED standards and electrical panels meeting CE directives.


Pressure Testing: Every pressure vessel and piping circuit undergoes hydrostatic testing at 1.5x operating pressure prior to factory dispatch.


Welding Standards: Piping manifolds are welded by certified technicians using automatic orbital TIG welding machines, with endoscopic weld inspection reports available upon request.


Factory Acceptance Testing (FAT): Fully assembled skids are wet-tested using simulated feed water to verify flow rates, instrumentation calibration, and alarm logic.


Material Traceability: Major components (pumps, instruments, membranes, and valves) are supplied with original manufacturer material certificates (EN 10204 3.1) and FDA-compliant declarations where applicable.



After-sales Technical Support

Commissioning Documentation

Comprehensive digital installation manuals, complete P&ID schematics, electrical wiring diagrams, and remote engineering support via video link during initial startup.

Spare Parts Availability

Critical wear items—including filter cartridges, RO membranes, resin media, and sensor probes—are stocked for dispatch within 48 hours.

Diagnostic Troubleshooting

On-board PLC data logging allows service engineers to analyze operating logs remotely and diagnose pressure drops or resin saturation rates efficiently.





FAQ



Q: What feed water parameters are required before sizing a DI water system?

A: Sizing requires a complete raw water analysis report containing total dissolved solids (TDS), hardness, silica, iron, pH, free chlorine, and silt density index (SDI). High silica or hardness levels require pretreatment units like softeners or antiscalant dosing to prevent membrane fouling.

Q: How do I determine whether to use mixed-bed resin or EDI technology?

A: Mixed-bed ion exchange relies on consumable resin media that requires periodic chemical regeneration or tank exchange. EDI uses electrical current and ion-exchange membranes to continuously regenerate the resin inside the module, making it suitable for continuous-duty facilities seeking to eliminate chemical handling.

Q: What is the expected lifespan of the ion exchange resins and RO membranes?

A: RO membranes typically last 3 to 5 years depending on feed water quality and pretreatment maintenance. Mixed-bed resin longevity depends on the inlet mineral load and daily operating hours, averaging between 1 to 2 years before exhaustion.

Q: Can the system integrate into our existing plant SCADA network?

A: Yes. The control panel supports standard industrial communication protocols including Modbus RTU, Modbus TCP/IP, and Profibus, allowing direct integration into plant-wide SCADA or DCS systems.

Q: What maintenance is required during day-to-day operation?

A: Routine tasks include daily logging of operational pressures and product resistivity, periodic calibration of conductivity sensors, replacement of pre-filter cartridges when differential pressure exceeds 0.15 MPa, and routine sanitization cycles.

Q: How is the equipment protected during international ocean transit?

A: Skids are wrapped in moisture-barrier PE film, secured with shock-absorbing mounts inside ISPM 15-compliant fumigated wooden crates, and packed with desiccants to prevent corrosion of electrical enclosures and stainless steel components during transit.



modular-1
Request a Quote

To receive a customized technical proposal, 3D footprint layout, and equipment sizing calculation, submit the following parameters to our engineering team:
Required hourly flow rate (m3/h or GPM) and daily operating hours.
Target water quality (Resistivity in MOhm*cm or Conductivity in uS/cm).
Available feed water source (Tap water, well water, or RO permeate) along with a recent water analysis report.
Available electrical supply specifications (Voltage, Phase, Frequency).

We're well-known as one of the leading deionized water system manufacturers and suppliers in China, featured by quality products and good price. Please rest assured to buy bulk deionized water system made in China here from our factory. Customized orders are welcome.
