Product Overview

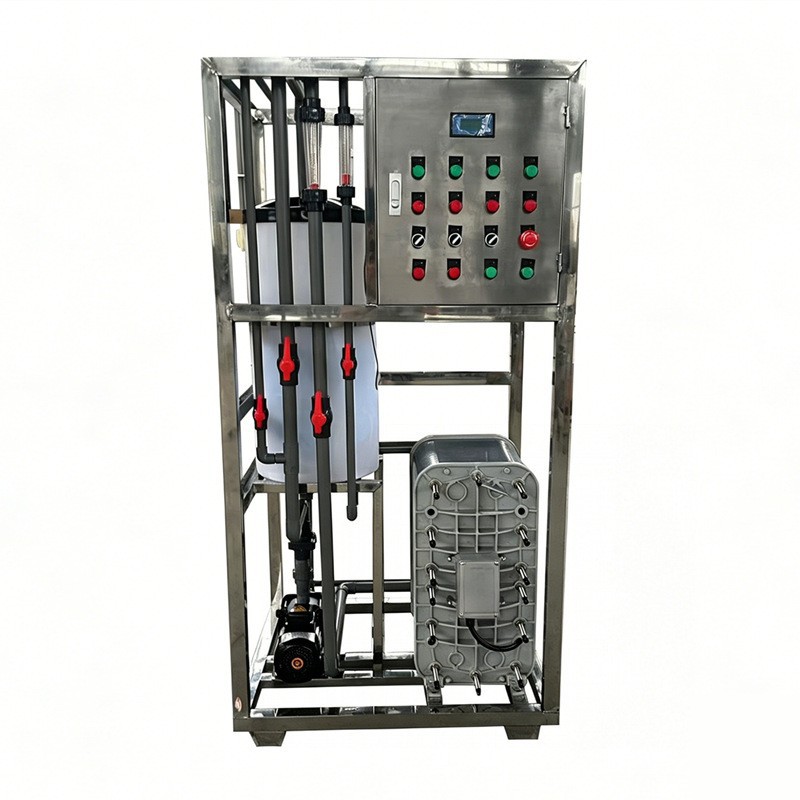

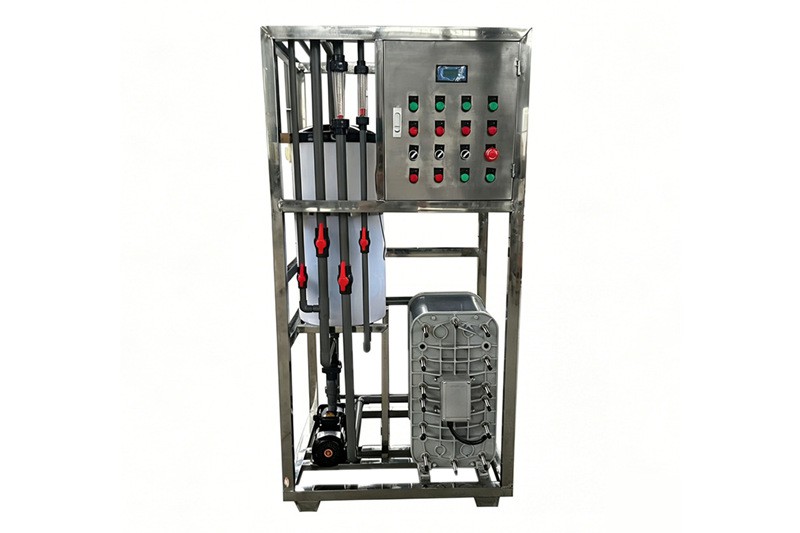

This is our Industrial EDI Ultrapure Water Equipment. It is a high-efficiency industrial water treatment system built for heavy industrial use.
It combines reverse osmosis (RO) technology with advanced EDI electrodeionization. This mix of technologies lets it produce stable, top-quality ultrapure water continuously.
The EDI system works simply. It uses ion exchange membranes, resins and a DC electric field to remove impurities from water. It can also regenerate its resins automatically with electrolyzed water. You do not need acids or alkalis for this process.
This system solves your industrial pure water needs. It works reliably for long-term production use.
Feature Highlights
- High efficiency cost saving: It hits 99.99% salt rejection and 90-95% water recovery, cutting your water and operation cost greatly.
- No chemical regeneration: It regenerates resins automatically without acids/alkalis, reducing your chemical cost and waste discharge.
- Full auto operation: The system runs fully automatically, cutting manual work and avoiding operation errors.
- Stable ultrapure output: It delivers consistent 0.07-0.13 us/cm conductivity water, meeting strict industrial ultrapure standards.
Technical Specifications
|
Parameter |
Details |
|
Model Number |
YN-EDI-10T/H |
|
Processing Capacity |
10t/H (2640 Gallon/H) |
|
Inlet Water Pressure |
0.31-0.68 MPa |
|
Pressure Difference |
0.14-0.24 MPa |
|
Working Temp |
5-38°C |
|
Water Recovery |
90%-95% |
|
Salt Rejection |
99.99% |
|
Operation Mode |
Automatic |
|
Materials |
UPVC + Stainless Steel/FRP |
EDI Removal Performance
|
Parameter |
Influent |
Outfluent |
Removal Rate |
|
Conductivity |
5-9 us/cm |
0.07-0.13 us/cm |
98% |
|
SiO2 |
80-250 μg/L |
2-12 μg/L |
93-98% |
|
Na+ |
1400-1600 μg/L |
1.5-3.5 μg/L |
99.8-99.9% |
|
Cl- |
200-400 μg/L |
0.08-0.4 μg/L |
99.9% |
|
SO42- |
30-300 μg/L |
0.1-0.4 μg/L |
99.9% |
|
CO2 |
7000 μg/L |
20-60 μg/L |
99.1-99.7% |
|
TOC |
15-30 μg/L |
<15 μg/L |
- |
Application Scenarios
Electronics
Ultra-pure water for chip/component production, prevents product contamination.
Chemical
Stable pure water to keep your chemical product quality consistent.
Boiler Feed
Removes scale ions to protect your boiler, extends its service life.
Customization Options
Custom Capacity
Adjust system output to match your required processing flow.
Material Options
Choose materials based on your raw water, e.g. full stainless steel.
Power Adjustment
Fit your local voltage and frequency requirements.
Why Choose Us?
10 Years Experience
Professional water treatment manufacturer with 10 years industry experience.
Full Certifications
ISO 9001 other global standard certifications.
Global Service
Exported to 10+ countries, rich international order experience.
Lifetime Support
Professional R&D and after-sales team, lifetime technical support.
FAQ
Q: Are you a manufacturer or trader?
A: We are a high-tech manufacturer with our own factory, covering R&D, production, sales and service.
Q: What products do you offer?
A: Full range of water treatment products: RO systems, ultrapure systems, desalination equipment and more.
Q: What info do I need for custom solution?
A: Raw water info, required capacity, water usage, local power specs, installation needs.
Q: How long is lead time?
A: 5-20 days for standard products, custom ones take a bit longer.
Q: What's your warranty?
A: 1 year full warranty, the system works over 5 years with proper use.
